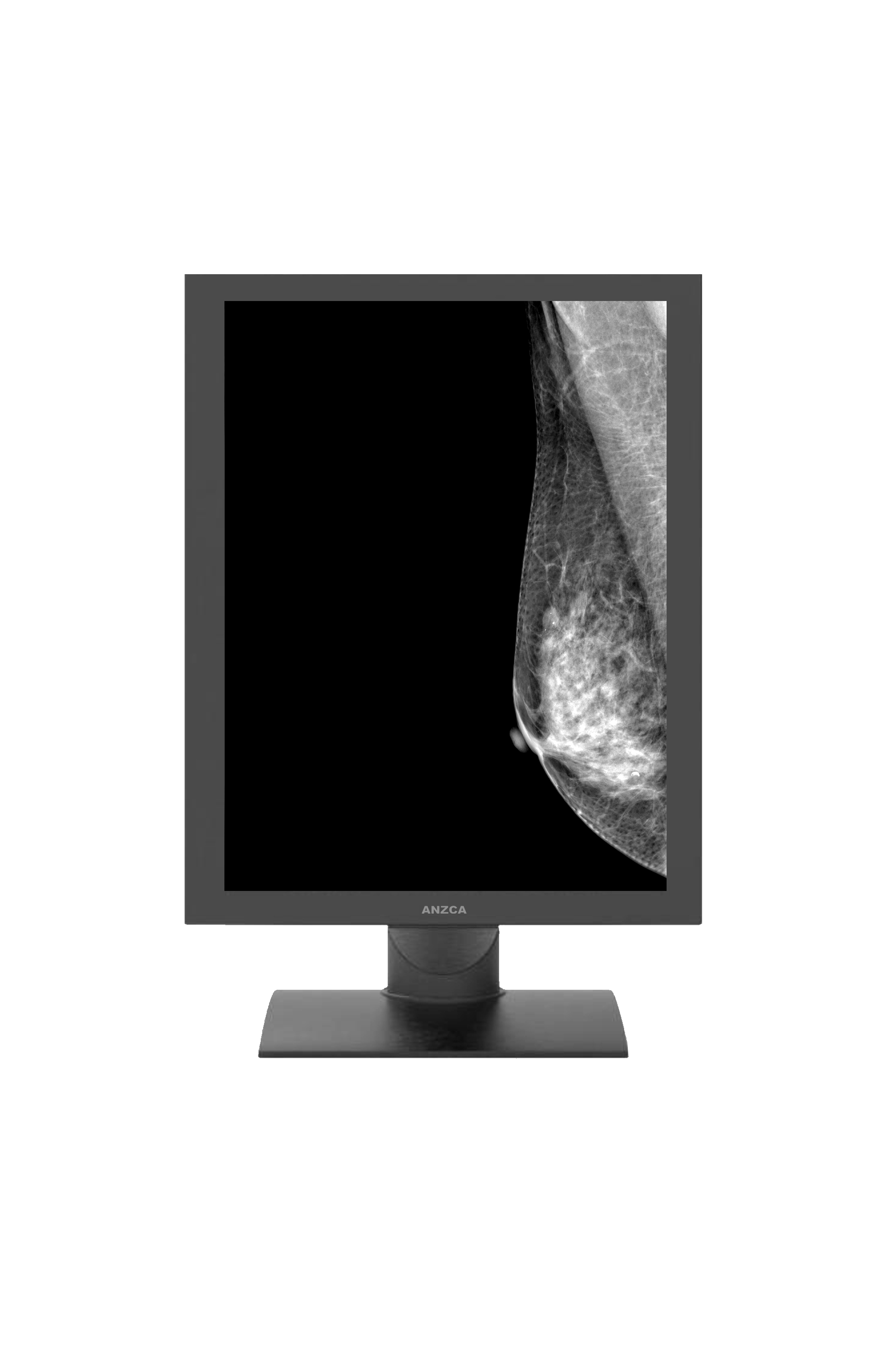

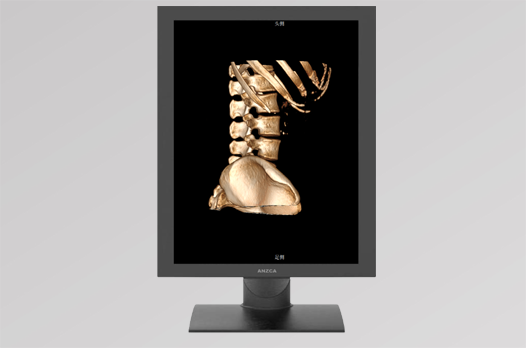

3M Medical LCD monitor
LCD Panel Specifications
|
Size |
21.3" |
|
Maximum Resolution |
2048*1536@60Hz |
|
Dot Pitch |
0.0705×0. 2115mm(H×V) |
|
Brightness |
550cd/㎡ |
|
Contrast Ratio |
1000：1 |
|
Response Time |
TR+TF 20ms |
|
Viewing Angle |
LEFT- RIGHT:178 UP-DOWN: 178 |
|
Backlight Type |
LED |
|
Color |
Color |
Product Specifications
|
Input signal interface |
VGA/DVI/HDMI/DP |
|
|
Output signal interface |
/ |
|
|
Power Adapter Interface |
Interface |
IEC320-C14 ；4PIN |
|
Input Voltage |
AC110~240V,50~60Hz |
|
|
Output oltage |
DC12V |
|
|
Output Power |
120W |
|
|
Power Factor |
0.90 |
|
|
Power Consumption |
Maximum Power Consumption |
≤50W |
|
Standby Power Consumption |
≤1.5W |
|
|
Operating Temperature |
0℃-40℃ |
|
|
Operating Humidity |
20%-80% RH |
|
|
Storage Temperature |
-10℃-60℃ |
|
|
Storage Humidity |
10%-60% RH |
|
|
Operating Atmospheric Pressure |
84KPa-106KPa |
|
Product Features:
• 21.3" Medical Imaging Display
• Wide Color Gamut with clinically accurate color reproduction
• 3M Medical Color Diagnostic Display
• DICOM 3.14 medical standard compliance
• Multi-channel Gamma calibration for tissue contrast optimization
• Multi-interface input support:DP/DVI/HDMI/VGA signal compatibility
• One-Touch Workflow:
• Eco Backlight Technology
•Supports Portrait/Landscape Orientation Rotation
