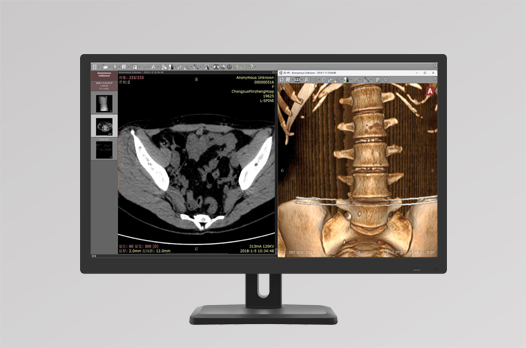

8M Medical LCD monitor
LCD Panel Specifications
|
Size |
27" |
|
Maximum Resolution |
3840*2160@60Hz |
|
Dot Pitch |
0.2331×0. 2331mm |
|
Brightness |
550cd/㎡ |
|
Contrast Ratio |
1000：1 |
|
Response Time |
TR+TF 14ms |
|
Viewing Angle |
LEFT- RIGHT:178度 UP-DOWN: 178度 |
|
Backlight Type |
LED |
|
Color |
Color gradation/Grayscale |
|
|
|
Product Specifications
|
Input signal interface |
VGA/DVI/HDMI/DP/ |
|
|
Output signal interface |
/ |
|
|
Power Adapter Interface |
Interface |
IN IEC320-C14 ；4PIN |
|
Input Voltage |
AC110~240V,50~60Hz |
|
|
Output oltage |
24V⎓ 5A |
|
|
Output Power |
120W |
|
|
Power Factor |
0.90 |
|
|
Power Consumption |
Maximum Power Consumption |
≤60W |
|
Standby Power Consumption |
≤1.5W |
|
|
Operating Temperature |
0℃-40℃ |
|
|
Operating Humidity |
20%-80% RH |
|
|
Storage Temperature |
-10℃-60℃ |
|
|
Storage Humidity |
10%-60% RH |
|
|
Operating Atmospheric Pressure |
84KPa-106KPa |
|
|
|
||
Product Features:
• 8M Medical Integrated Display
• Supports portrait/landscape screen rotation
• Ultra-slim bezel design with expanded viewing area
• DICOM 3.14 medical display standard compliant
• Multi-interface compatibility with multi-signal mode support
• Hierarchical button configuration with dedicated quick-access menu
• sRGB & User color mode presets
• Seamless dual/quad-screen configurations & PIP (Picture-in-Picture)
• Customizable shortcut keys with programmable functionality
• Flexible regional display customization
• Preloaded DICOM-optimized clinical viewing presets
• Multi-channel Gamma calibration profiles
• Instant color/grayscale toggle function
• One-touch film-viewing simulation mode
• Eco-backlight technology for enhanced LCD longevity
Application Modes
|
|
|
|
Image Enhancement Mode |
Clinical Web Viewer Mode |
|
|
|
|
Multimedia Reporting Mode |
Dynamic 3D Reconstruction Mode |
