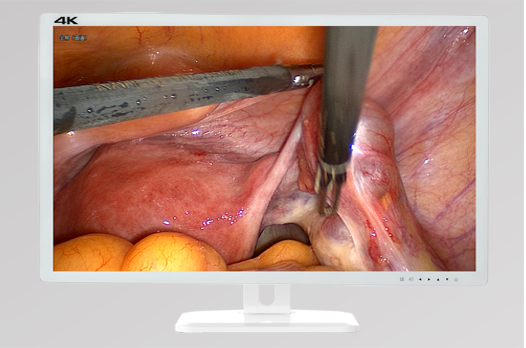

32"Medical LCD monitor
LCD Panel Specifications
|
Size |
32" |
|
Maximum Resolution |
3840*2160@60Hz |
|
Dot Pitch |
0.2745×0.2745 |
|
Brightness |
400cd/㎡ |
|
Contrast Ratio |
1500：1 |
|
Response Time |
8ms |
|
Viewing Angle |
LEFT- RIGHT:178° UP-DOWN: 178° |
|
Backlight Type |
LED |
|
Color |
Color |
Product Specifications
|
Input signal interface |
HDMI×1;DVI×1;AV(BNC)×2;VGA×1 |
|
|
Output signal interface |
AV(BNC)×1 |
|
|
Power Adapter Interface |
Input Voltage |
AC100~240V，50/60Hz |
|
Maximum Power Consumption |
≤35W |
|
|
Standby Power Consumption |
≤3W |
|
|
Operating Temperature |
0℃-66℃ |
|
|
Operating Humidity |
20%-80% RH |
|
|
Storage Temperature |
-10℃-60℃ |
|
|
Storage Humidity |
10%-60% RH |
|
|
Installation |
VESA 100mmx100mm |
|
|
Color |
Medical-grade white (RAL 9016 standard) |
|
|
Operational Lifetime |
≧50000hours |
|
|
Compliance |
DICOM Part 14 grayscale standard compliance with System-Adaptive Calibration |
|
Product Features:
Multi-Language
EMI-Shielded All-Metal Chassis。
High-Performance Imaging
Smart Signal Management
5ms GTG response (MPRT 1ms)
Auto Aspect Ratio Detection (4:3/16:9/21:9)
Advanced Imaging Technologies
Industrial-Grade Reliability
60,000-hour LCD lifespan (MTBF >100,000 hrs)
IR remote + front-panel tactile controls，
VESA 100×100/200×200 mounting compatibility
